ABB FTIR

Founded in 1973, ABB Analytical Measurements (formerly Bomem Inc) designs, manufactures and markets high-performance, affordable FT-IR / FT-NIR spectrometers

ABB 即為原來德國Bomem FTIR,以提供高精密，高解析度儀器著稱，領先全世界獨家以防潮式ZnSe Beamsplitter 設計，解決FTIR長久以來的潮解，除濕問題，並以50000:1的高感度，提供客戶簡單維護，高精密的分析儀器

FTIR & FT-NIR Spectrometer
傅利葉中紅外光/近紅外光光譜儀

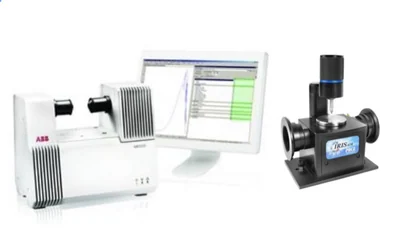

MB-3000 FTIR

獨家採用防潮式ZnSe Beamsplitter,可適用於各種艱難操作環境，避免Beamsplitter 潮解（一般來說此維修費用需US$8000以上)

專為QA/QC 及專業實驗研究而設計
可使用ABB 專有附件及第三方附件，直接使用，不需再重新調整光徑。
PIKE : MIRacle ATR, horizontal ATR, DRIFT, gas cells)
Harrick : DRIFT Reaction Chamber up to 900 degree C,Heated Cell,60 degree VATR etc.

Spectroscopic performance (typical at 25°C with DTGS detector)

Spectral range: 485 to 8500 cm-1
Resolution: better than 0.7 cm-1
Apodized resolution: adjustable from 1 to 64 cm-1, in increments of 2
Maximum signal-to-noise ratio (root-mean-square, 60 s, 4 cm-1, at peak response): 50000:1
Signal sampling: 24-bit ADC
Short-term baseline instability: < 0.09 %
Temperature stability: < 1% per °C
Frequency repeatability @ 1918 cm-1: < 0.001 cm-1
Frequency accuracy @ 1918 cm-1: < 0.06 cm-1

MB-3600 FT-NIR

所有光學器件均不吸水，不需要用N2及乾燥劑來保護光學器件
Patented double pivot interferometer mechanism. High throughput Michelson interferometer with protective cover.
Source, quartz halogen with electronic stabilization, expected half life, 10 years
Metrology: solid-state laser (no scheduled maintenance required)

Spectral range with DTGS detector 3,700 to 15,000 cm-1
Spectral range with InAs detector 3,700 to 12,000 cm-1
Spectral range with InGaAs detector 3,900 to 11,000 cm-1
Resolution better than 0.7 cm-1
Apodized resolution adjustable 1 cm-1 to 64 cm-1, in increments of 2
Signal-to-noise ratio (root-mean-square, 60s, 16 cm-1, at peak response) with DTGS detector: > 100 000: 1
Signal-to-noise ratio (root-mean-square, 60s, 16 cm-1, at peak response) with InAs detector: > 500 000: 1
Signal-to-noise ratio (root-mean-square, 60s, 16 cm-1, at peak response) with InGaAs detector: > 600 000: 1
Signal sampling: 24-bit ADC
Short-term stability (@ 8000 cm-1) :< 0.09 %
Temperature stability (@ 8000 cm-1): < 1 % per ˚C
Frequency repeatability (@ 7300 cm-1): < 0.006 cm-1
Frequency accuracy (@ 7300 cm-1): < 0.06 cm-1
Absorbance reproducibility (toluene): < 0.002 AU
